SAP Service Functional Location

The Functional Location is the fixed, hierarchical technical or organizational position at which maintenance and service work is performed and history is tracked — independent of whichever Equipment happens to be installed there at any given time. It is the first of three Technical Object masters in Phase 3 of the Service master data setup (Functional Location → Equipment → Bill of Material), and it is the object that carries the Sold-To Party assignment that makes a technical position serviceable in the first place. This article maps its categories, its position in the organizational hierarchy, its integration with the surrounding masters, and the Service-specific field-level detail consultants must configure.

Part 1: Functional Location — Core Concepts (All Modules)#

1.1 What Is the Functional Location?#

A Functional Location represents a permanent, structural position — a building, a plant section, a machine bay, a process step — rather than a physical asset. Physical assets (Equipment) are installed into it and can be swapped, repaired, or replaced over time, but the Functional Location itself, and the maintenance/service history recorded against it, persists across those changes.

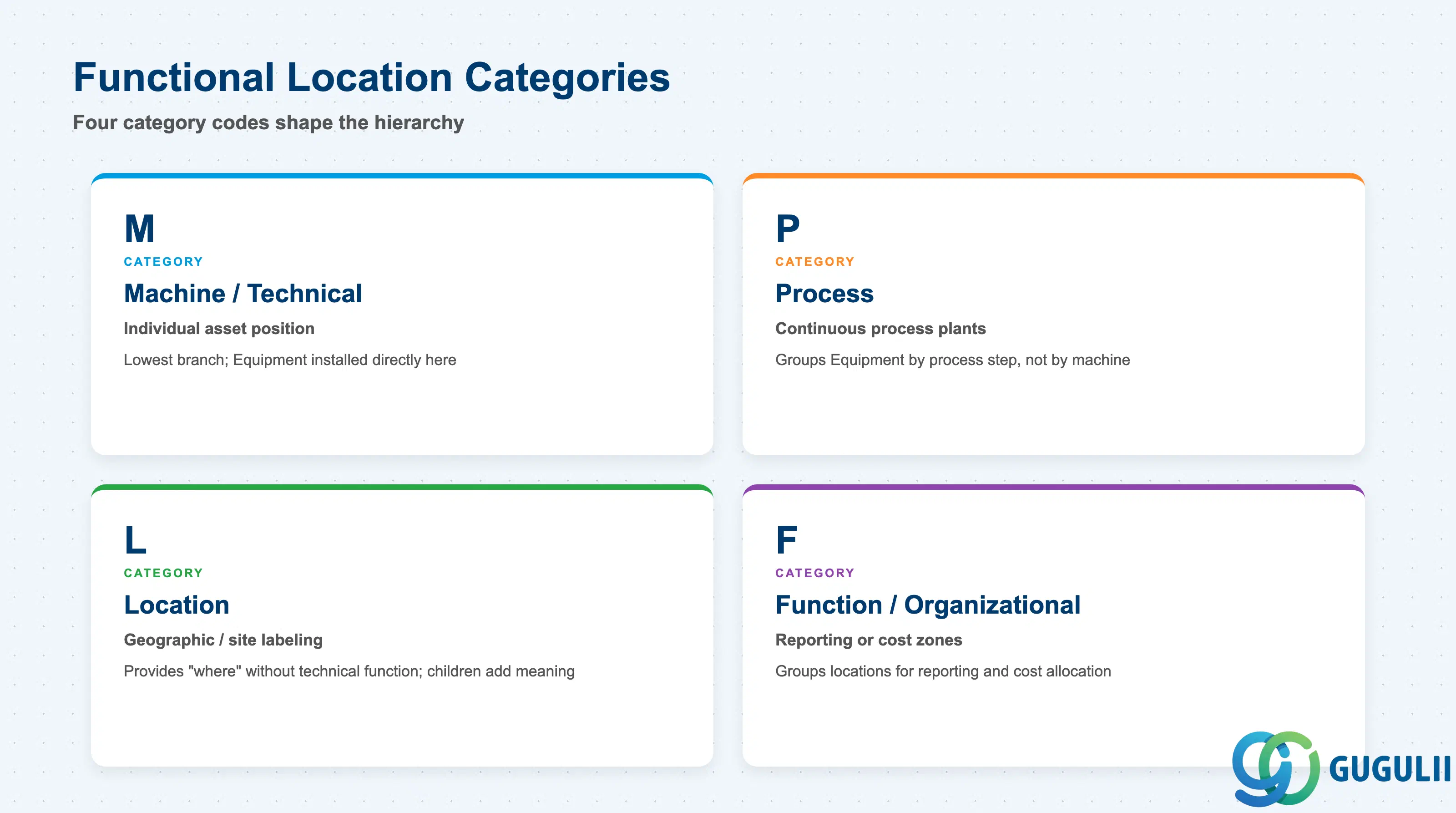

1.2 Functional Location Categories#

The Category is a Customizing-defined, single-character code that shapes what the Functional Location structurally represents and which reference structure (Equipment vs. Material) is expected below it. Choosing the wrong category early distorts the hierarchy for every site that copies the structure afterward.

Design principle: Keep the Category code set small and standardized, and map each Structure Indicator segment to one dominant Category, so the naming convention stays predictable across every site the company operates.

1.3 Organizational Levels and Data Hierarchy#

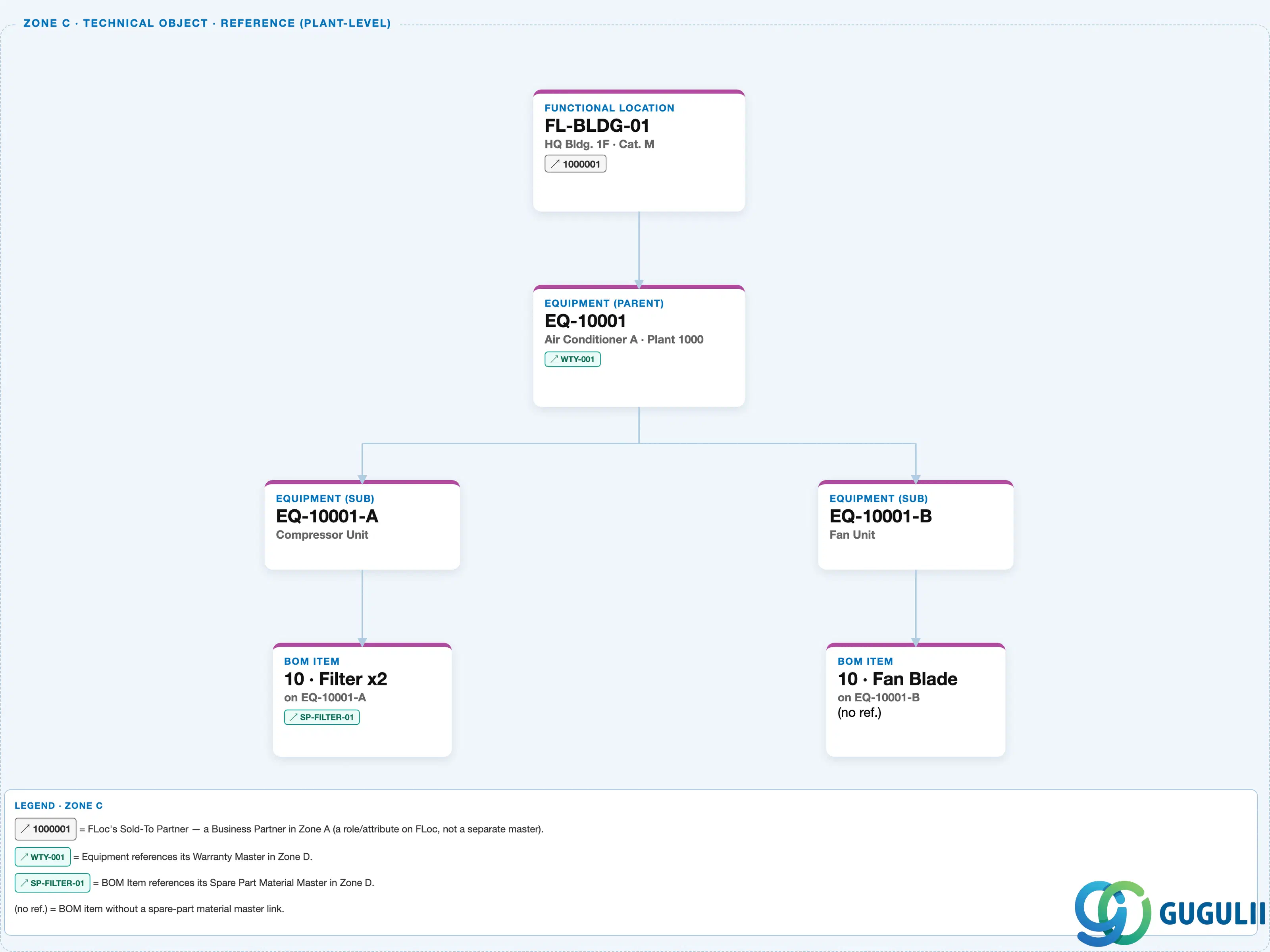

Data hierarchy with a concrete example

Client 100
   │
   FUNCTIONAL LOCATION "FL-BLDG-01" — HQ Bldg. 1F, Category M
   │      Sold-To Partner ── assigned to ──> Business Partner "1000001" (Zone A — reference, not an org-level child)
   │
   ↓  (Equipment installed at this Functional Location)
   EQUIPMENT (parent) "EQ-10001" — Air Conditioner A, Plant 1000
   │      Warranty ── assigned to ──> Warranty Master "WTY-001" (Zone D — reference, via Equipment, not owned by FLoc)
   │
   ├── EQUIPMENT (sub) "EQ-10001-A" — Compressor Unit
   │      └── BOM ITEM "10 · Filter x2" ── references ──> Material "SP-FILTER-01" (Zone D)
   │
   └── EQUIPMENT (sub) "EQ-10001-B" — Fan Unit
          └── BOM ITEM "10 · Fan Blade" (no spare-part reference)

Design principle: The Functional Location owns the position; it never owns a BOM or a Warranty directly — both are reached only indirectly, through whichever Equipment is currently installed. Read the arrows above as “assigned to / referenced by,” not as containment.

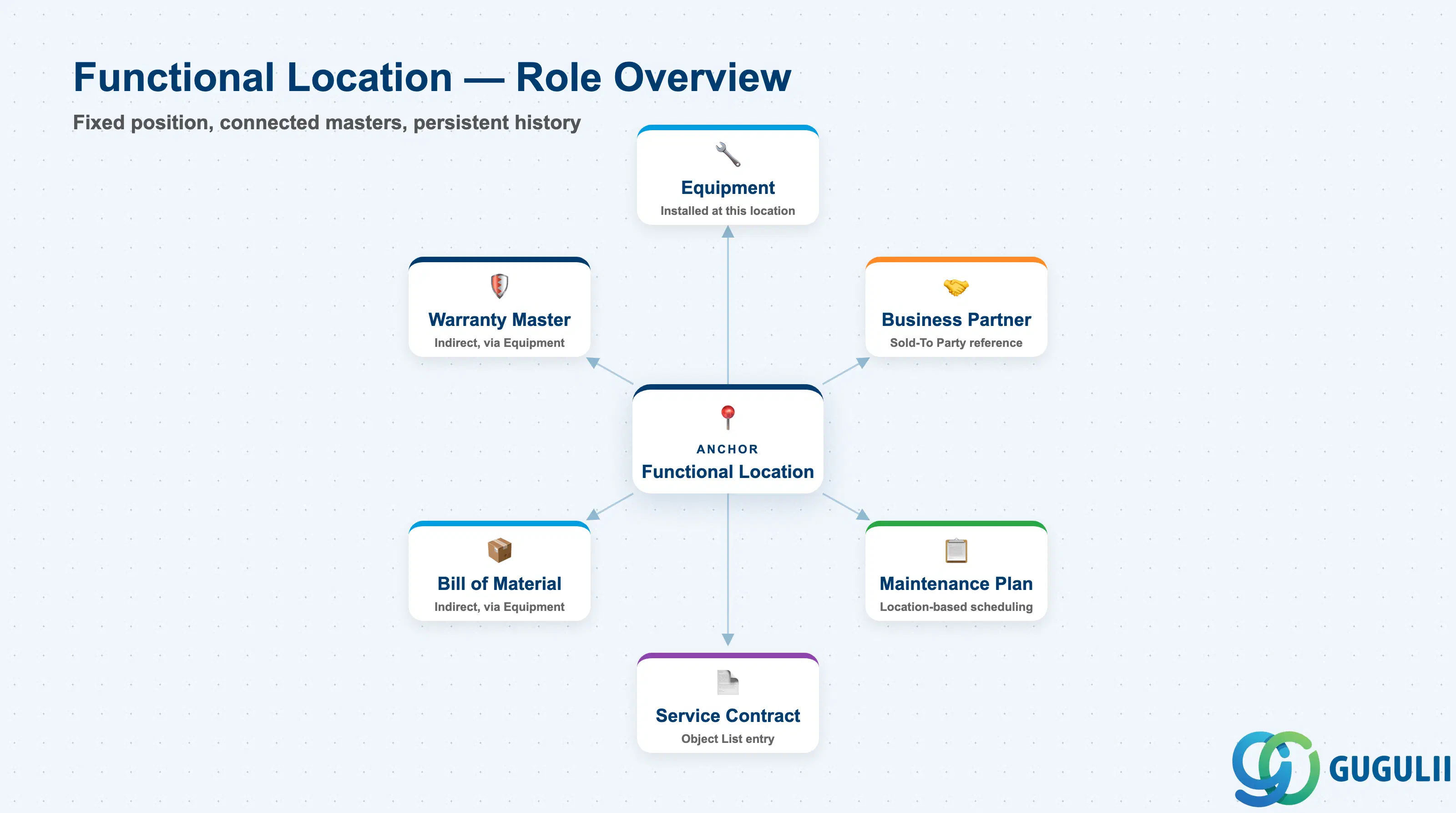

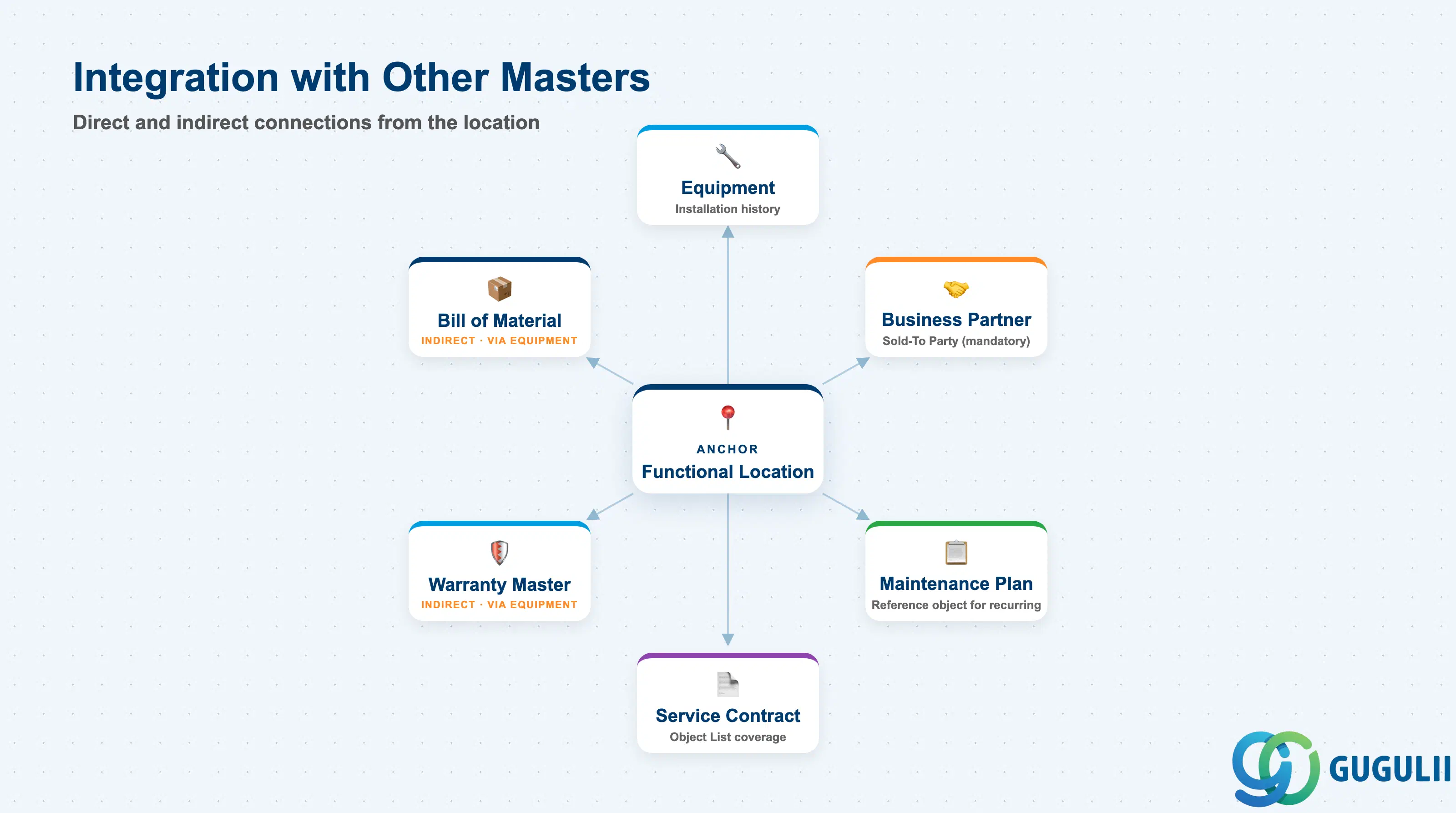

1.4 Integration with Other Master Data Objects#

The Functional Location does not stand alone — it is the anchor that other Technical Object and Service masters attach to, either directly or through the Equipment installed on it.

Part 2: Service-Specific Field Details#

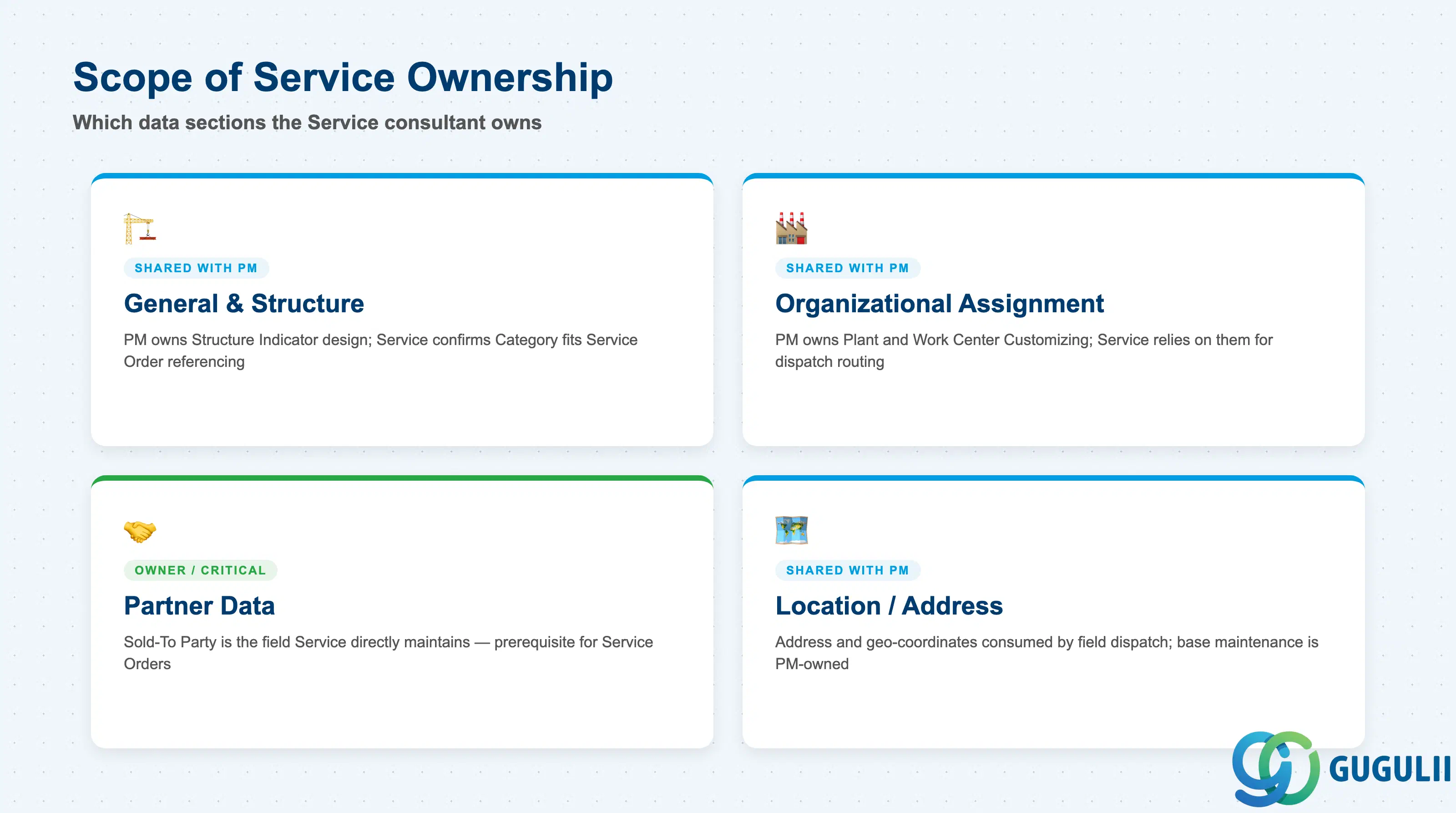

2.0 Scope of Service Ownership#

Legend: ◎ = Owner / Critical, ○ = Direct involvement

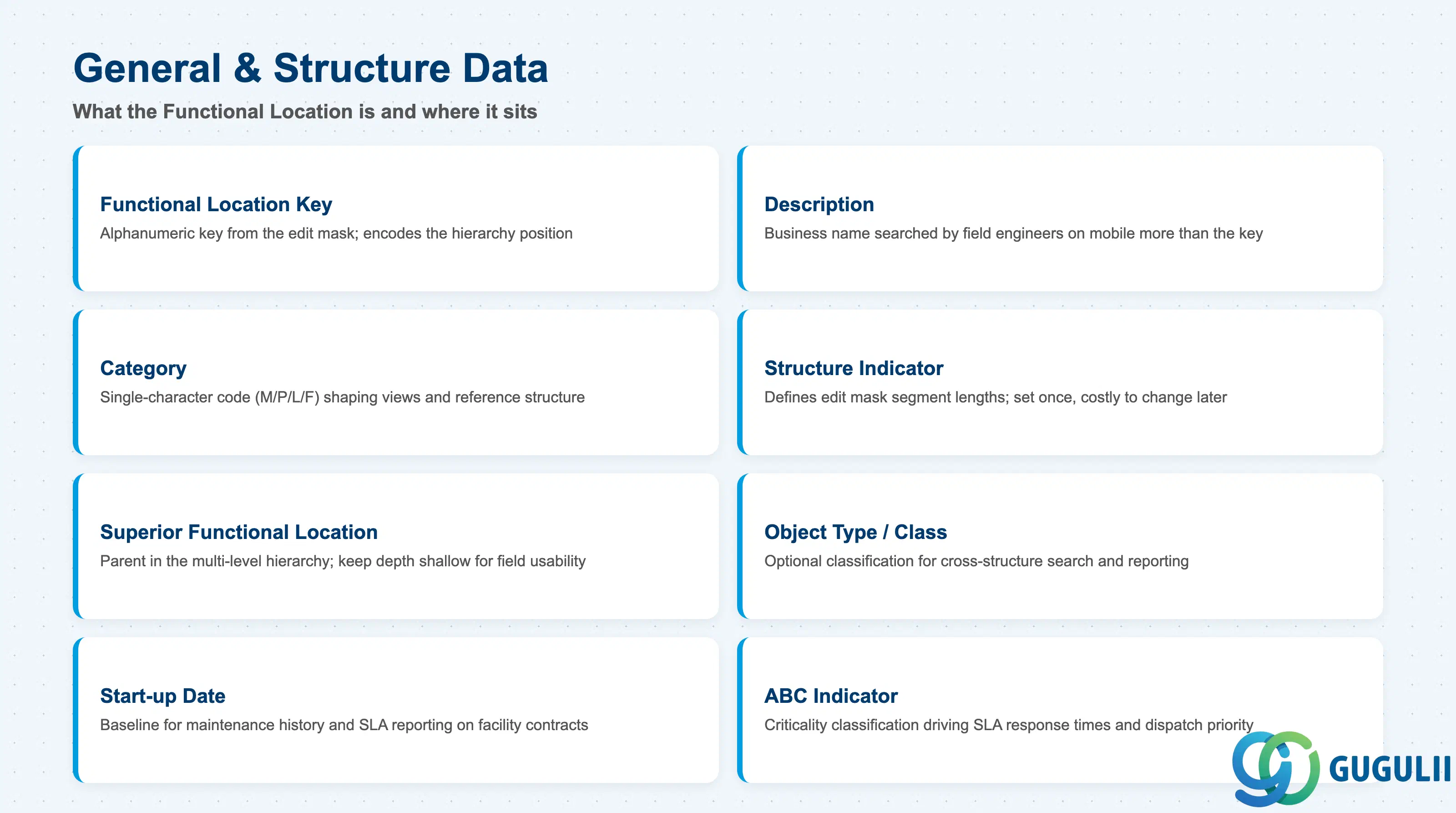

2.1 General & Structure Data#

General and Structure Data defines what the Functional Location is and where it sits in the multi-level Functional Location hierarchy.

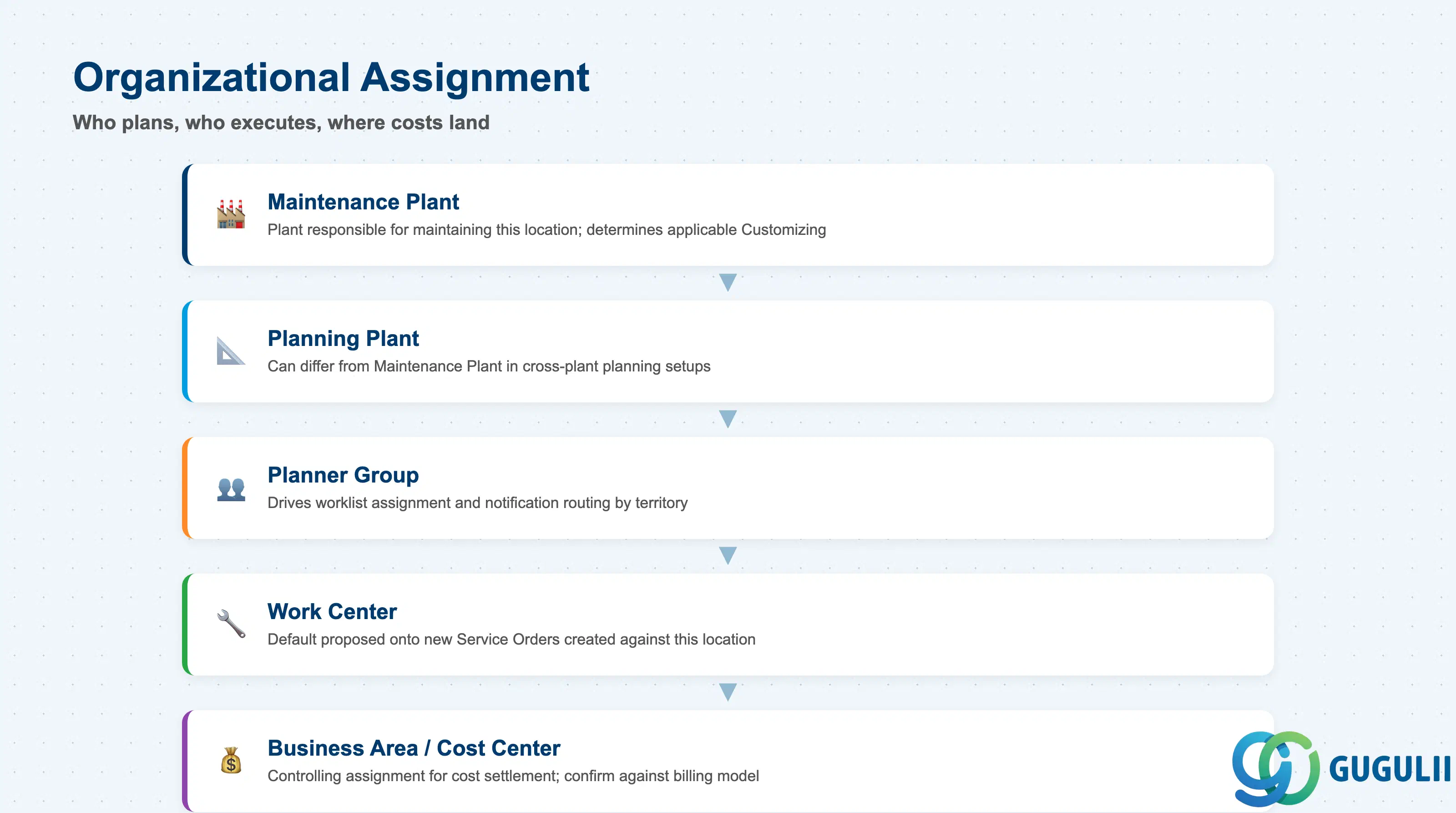

2.2 Organizational Assignment#

Organizational Assignment fields determine who plans, who executes, and where costs land for work performed against this Functional Location.

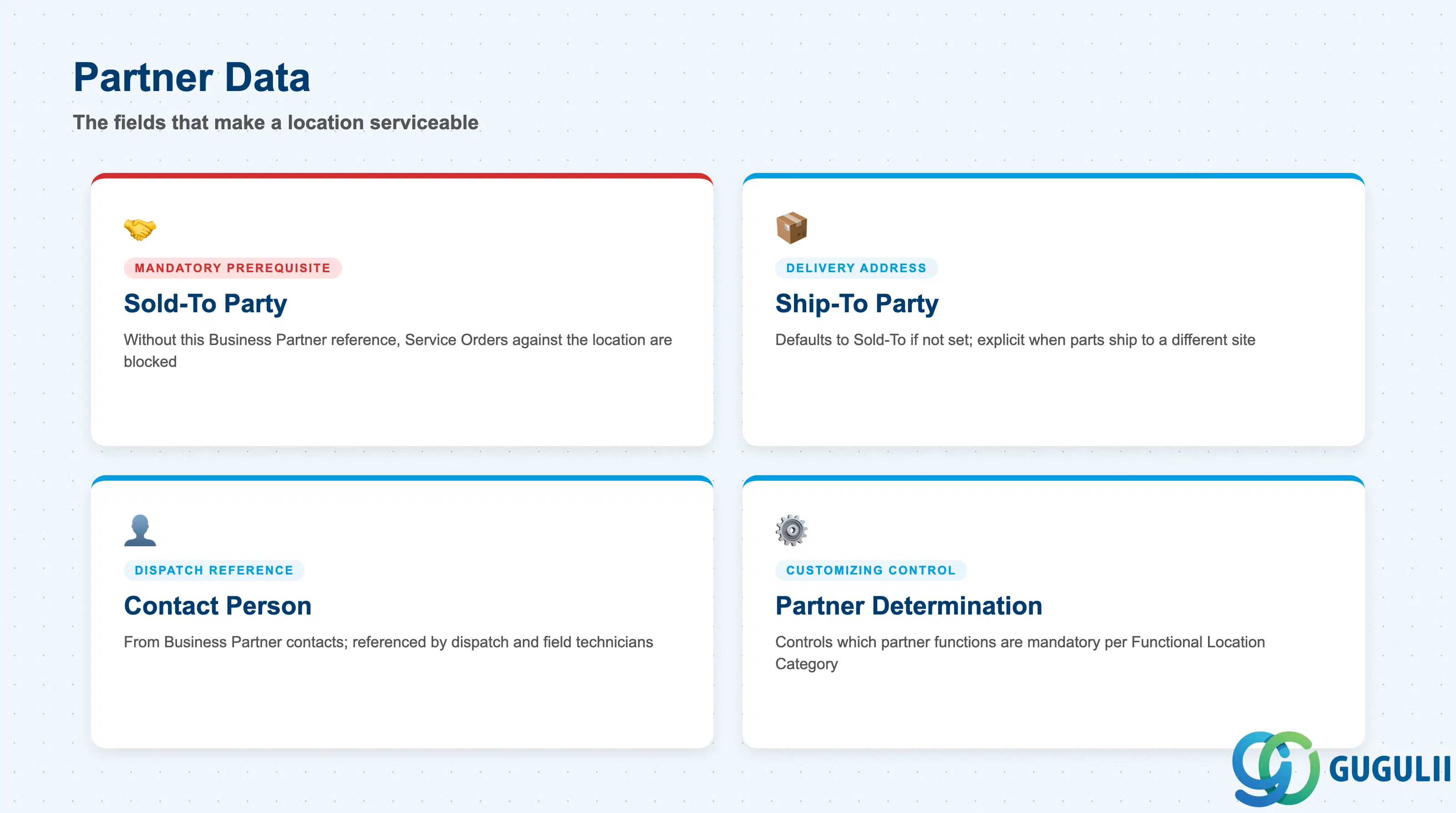

2.3 Partner Data#

Partner Data is the field Service consultants own outright — it is what turns a purely technical position into a serviceable, billable customer object.

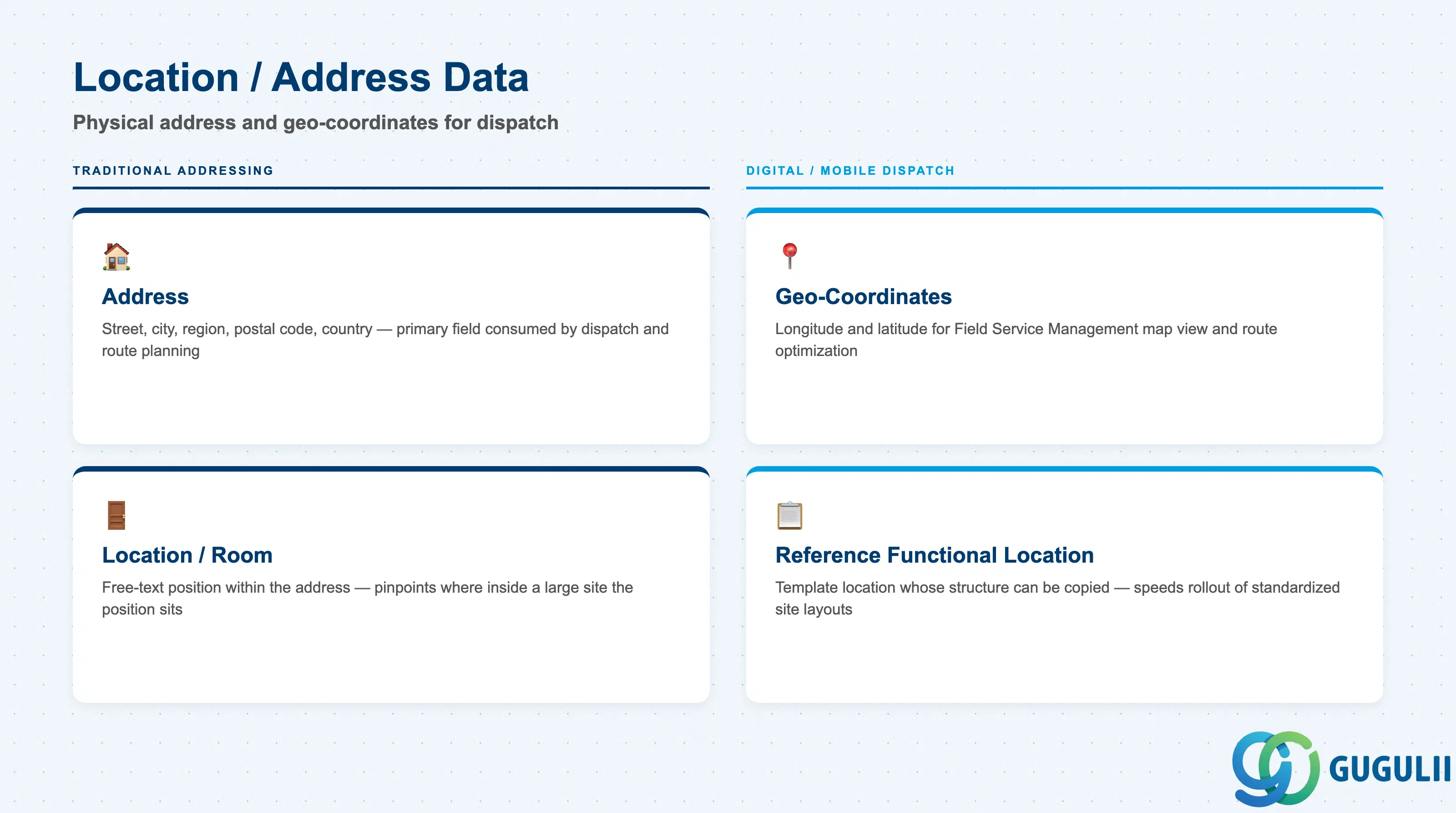

2.4 Location / Address Data#

Location and Address Data ties the Functional Location to a physical place — the information field dispatch and mobile apps consume directly.
