SAP Service Service Order Template

The Service Order Template is a reusable master record that pre-configures the order type, standard service items, planned duration, and default resources a Service Order needs — it is not itself a live order against a customer’s asset, but the standardized pattern a Service Manager builds once and reuses whenever a similar order must be created, whether that order is triggered manually, by a repair call, or automatically by a Maintenance Plan schedule. It is distinct from the Service Contract Template covered in the previous article: the Contract Template governs the contract/billing layer (item category, billing plan, price agreement) that a recurring commercial agreement needs, while the Order Template governs what a single Service Order execution itself needs — its order type, its standard tasks and resources, and how long it is expected to take. This is the second of two Phase 4 “Service Templates” objects in the Service master data setup, and — like the Contract Template — it sits directly downstream of the Service Product master defined in Phase 2. This article first covers the template concept in general terms (Part 1), then the Service-specific order-creation field detail (Part 2).

Part 1: Service Order Template — Core Concepts (All Modules)#

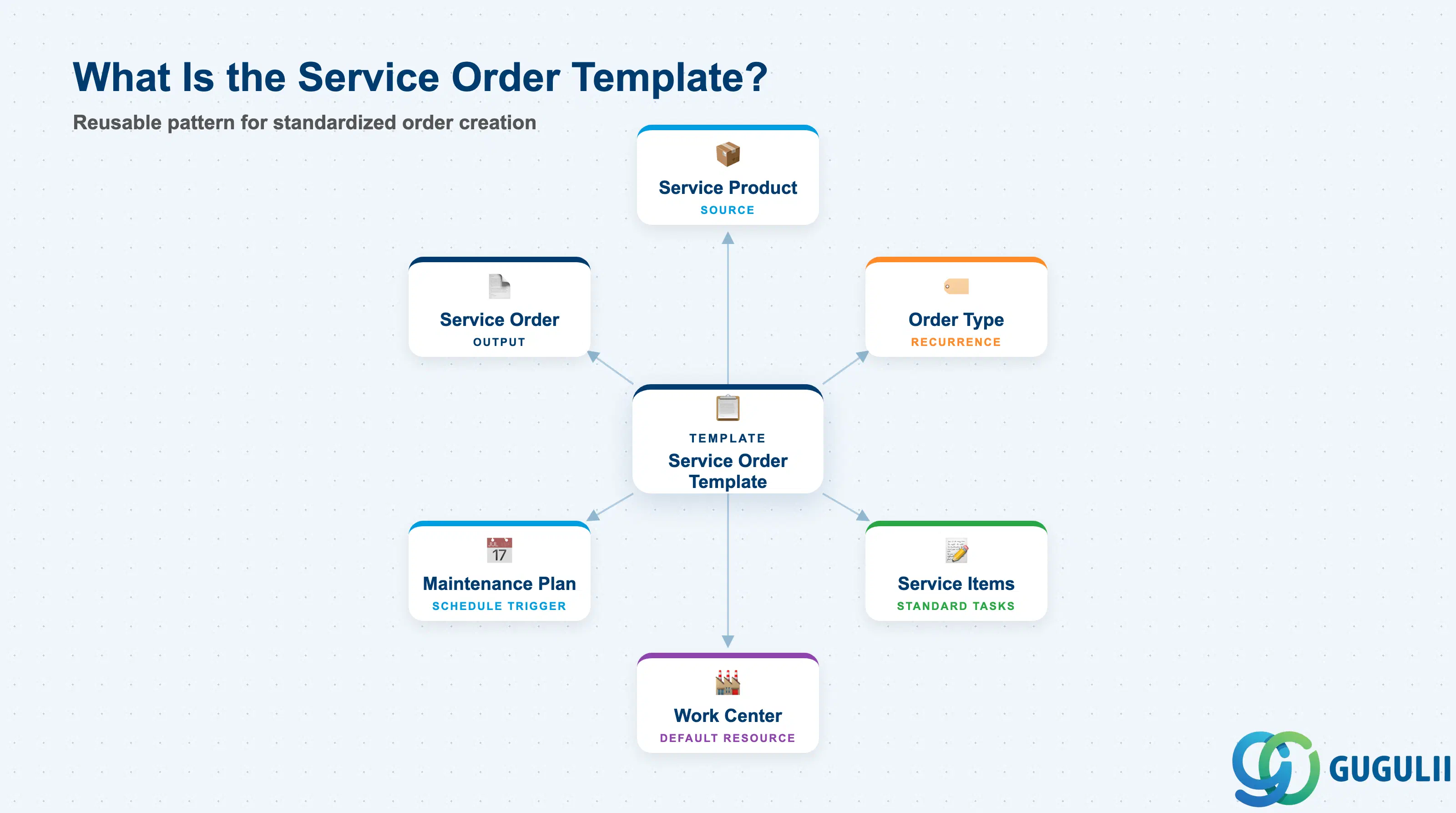

1.1 What Is the Service Order Template?#

A template, in the general SAP sense, is a master record that captures a repeatable pattern of defaults so a downstream transaction does not have to be configured line-by-line every time it is created. The Service Order Template applies this idea to Service Order execution: instead of a Service Manager re-entering the order type, the standard service items, the expected duration, and the default work center on every new order, the template stores these once and order creation copies them in as a starting point that can still be adjusted for the specific job.

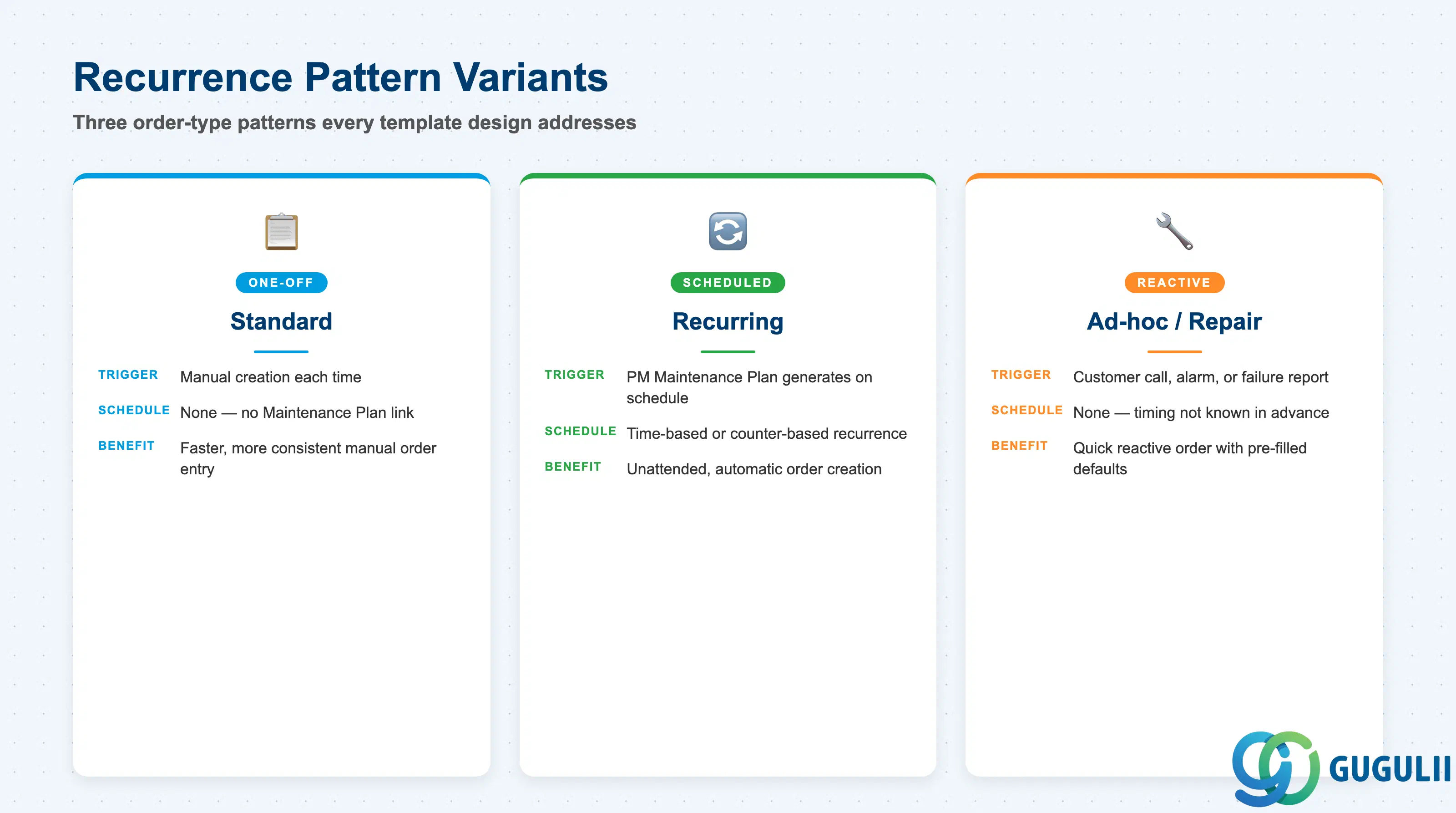

1.2 Order Type (Recurrence Pattern) Variants#

The template’s most consequential default is which recurrence pattern it is built for, because this determines whether the resulting orders are created manually one at a time, generated automatically on a schedule, or triggered reactively by an incident. Picking the wrong pattern at template design time means either manual effort is never reduced, or an automatic schedule is built on a template that was never meant to run unattended.

Design principle: Order type codes themselves are Customizing-defined per client (SAP does not ship a fixed universal set the way it does for Service Contract item categories) — but the three business patterns above (one-off, scheduled, reactive) cover the recurrence dimension every Order Template design decision needs to address. Build one template per pattern rather than one generic template with manual overrides for every order.

1.3 Organizational Levels and Data Hierarchy#

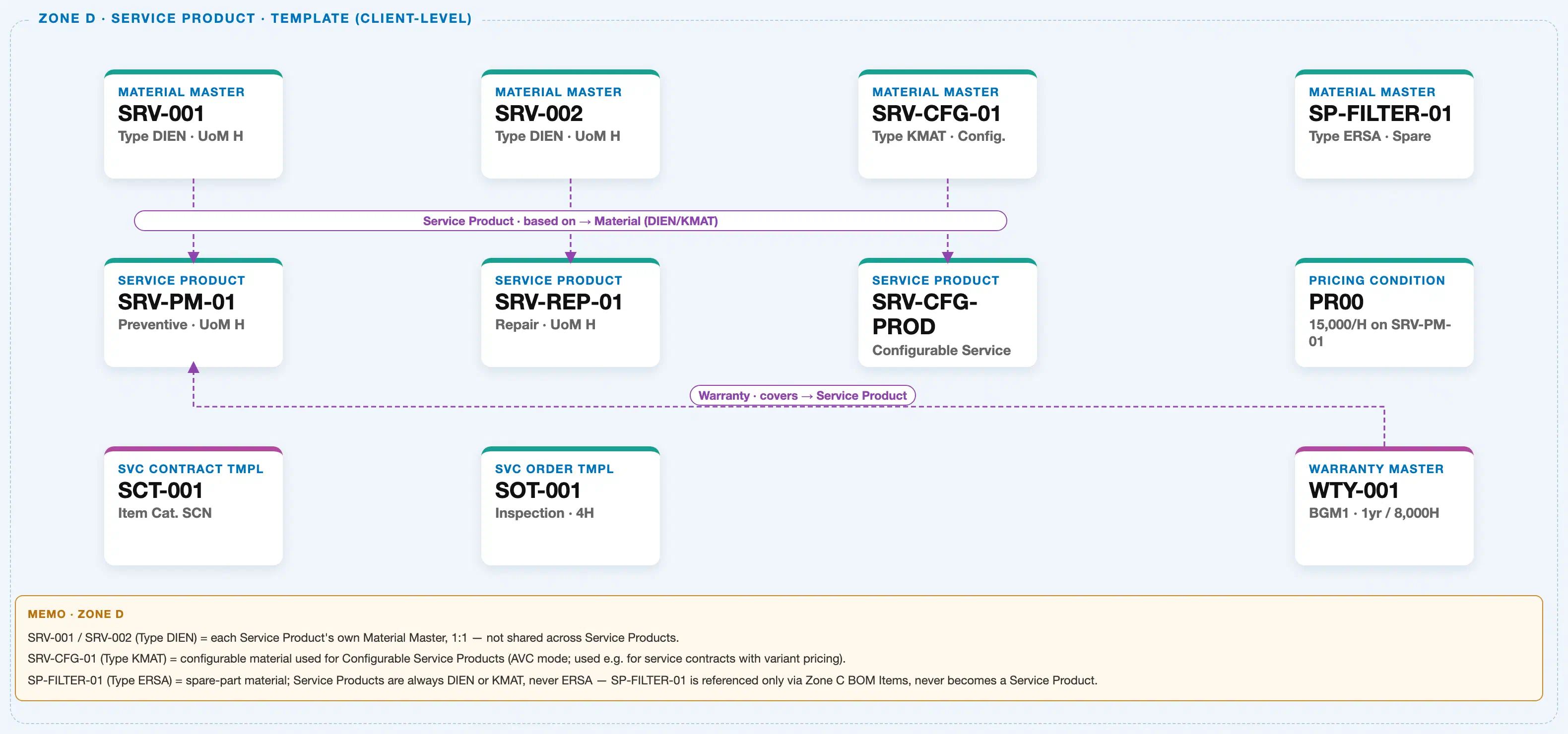

The diagram above crops Zone D — Service Product & Template (Client-Level) from the Service module’s Master Data Landscape. Like its Phase 4 sibling, the Service Order Template has no plant-level or organizational scoping of its own — it is a client-level pattern built directly from the Service Product master that already exists in the same zone.

Data hierarchy with a concrete example

Client 100
   │
   Material Master "SRV-002" (Type DIEN · UoM H)
      │
      └── ── Service Product is based on ──> Service Product "SRV-REP-01"
                                             (Repair · UoM H)

   Service Product "SRV-REP-01"
      │
      └── ── Order Template is derived from Service Product ──>
                                     Service Order Template "SOT-001"   ← this article's object
                                     Inspection · Planned Duration 4H

   Service Product "SRV-PM-01"
      │
      └── ── Contract Template is derived from Service Product ──>
                                     Service Contract Template "SCT-001"
                                     Item Cat. SCN · Billing Plan: Monthly (sibling Phase 4 template)

Design principle: A Service Order Template gets its item defaults from a Service Product — always confirm the Service Product’s unit of measure and item category group are finalized before the template is created, or the template’s service items will need rework the moment the underlying Service Product changes.

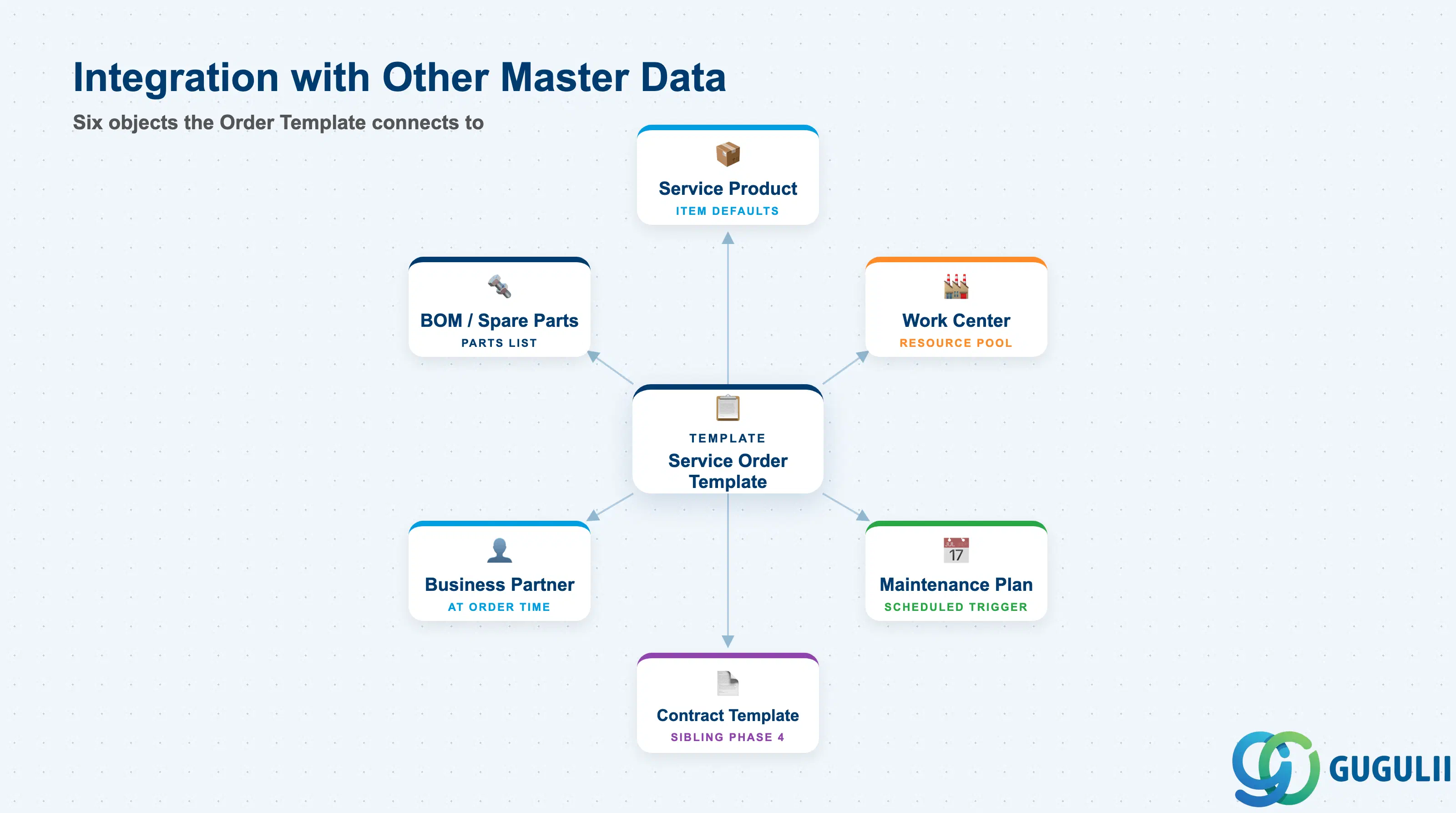

1.4 Integration with Other Master Data Objects#

The Service Order Template does not stand alone — it is the convergence point of the Service Product master, and, for the recurring variant, the trigger target of a PM Maintenance Plan.

Part 2: Service-Specific Field Details#

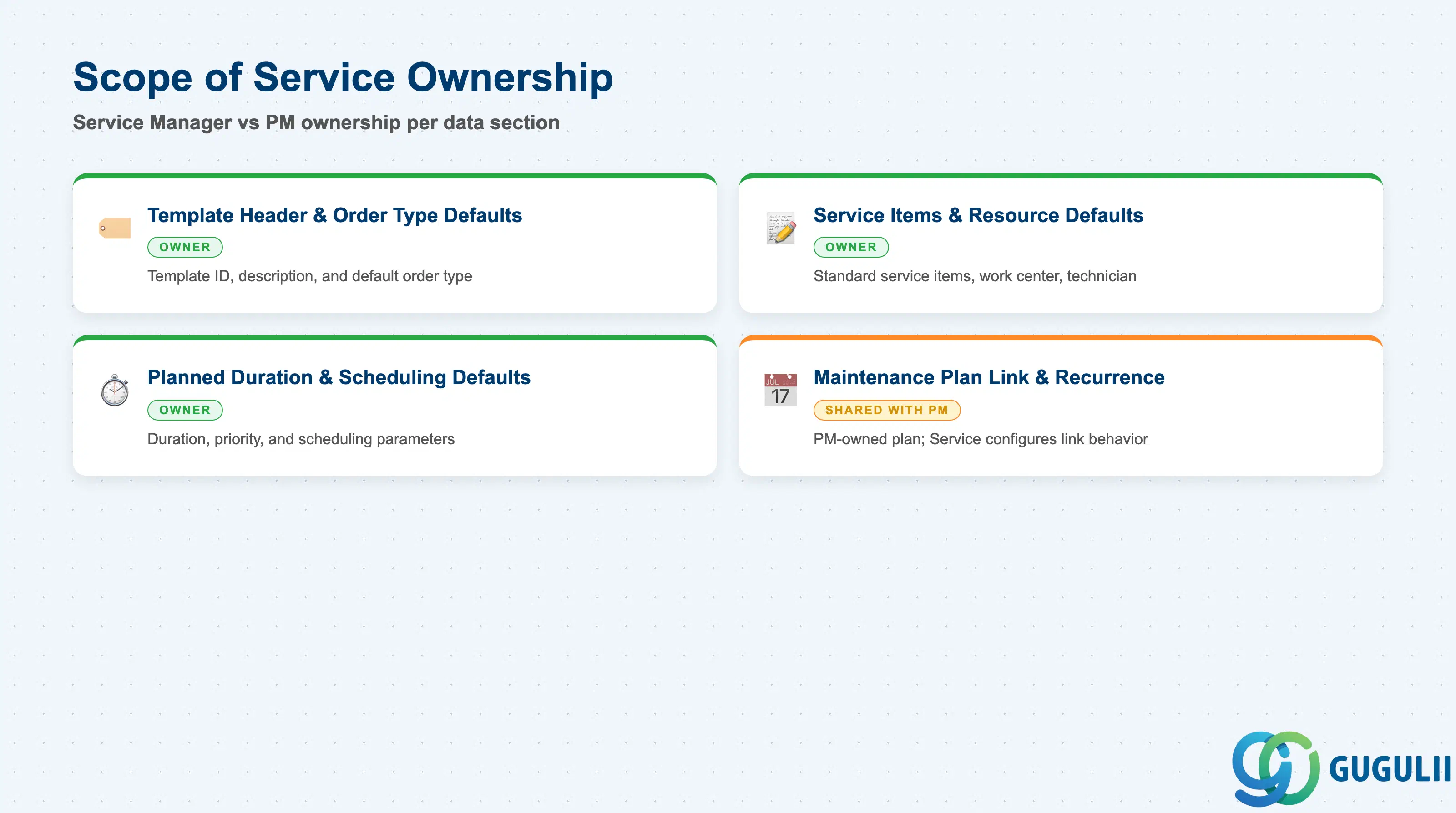

2.0 Scope of Service Ownership#

Legend: ◎ = Owner / Critical, ○ = Direct involvement

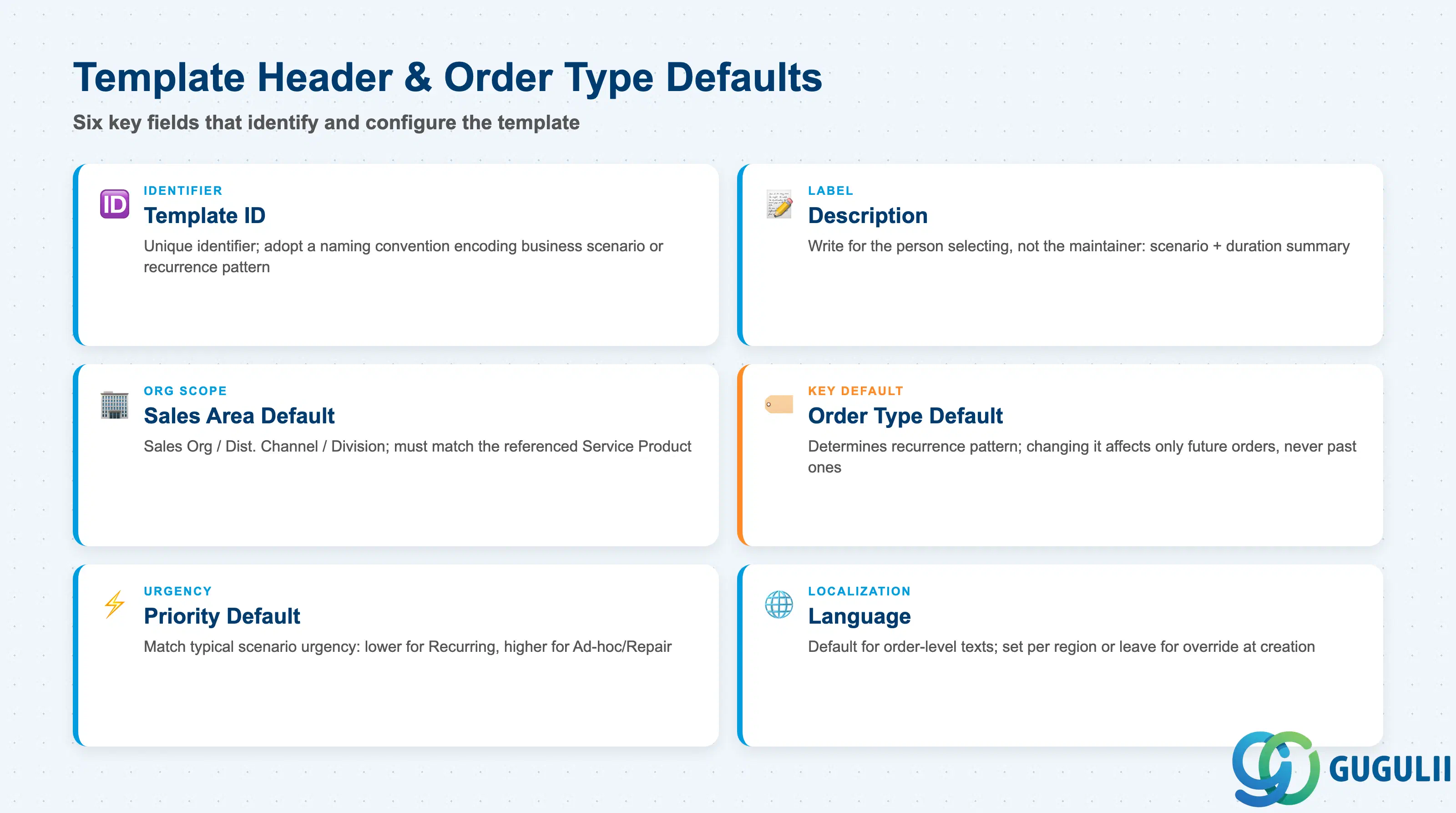

2.1 Template Header & Order Type Defaults#

Template Header & Order Type Defaults identify the template itself and set the single default that governs whether orders created from it are one-off, scheduled, or reactive.

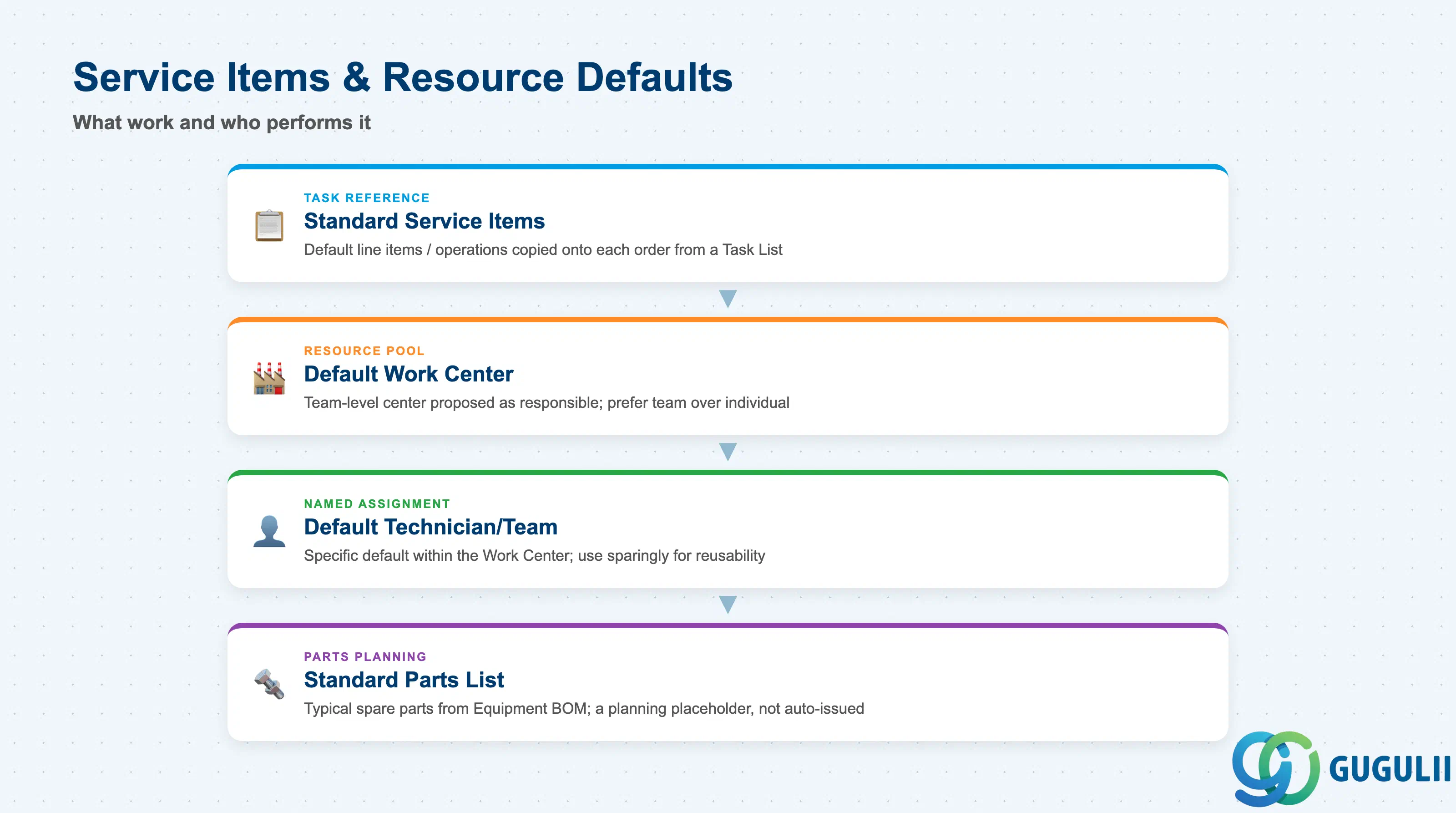

2.2 Service Items & Resource Defaults#

Service Items & Resource Defaults determine what work is expected to happen on an order created from this template, and who or what is expected to perform it.

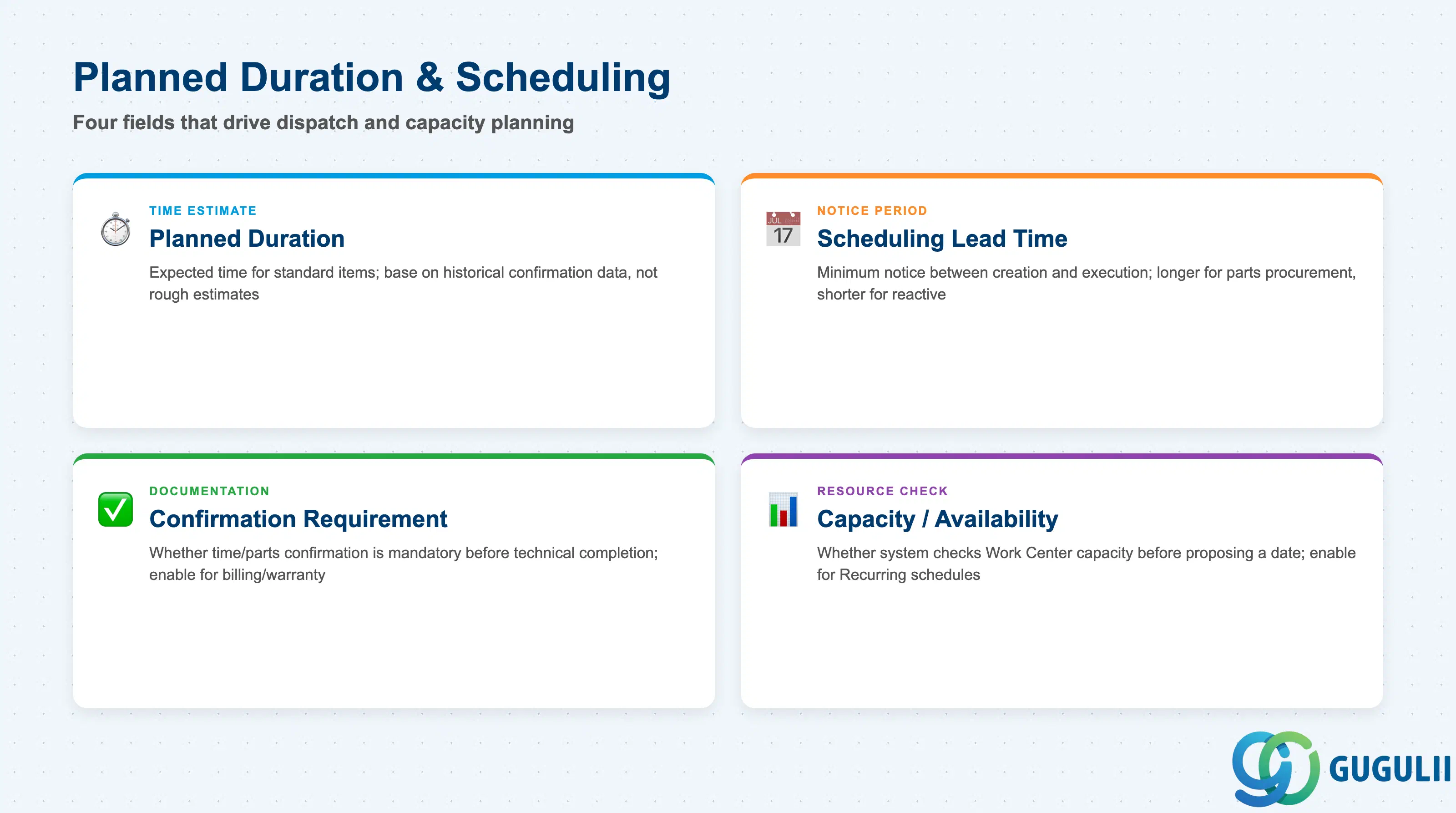

2.3 Planned Duration & Scheduling Defaults#

Planned Duration & Scheduling Defaults are what downstream dispatch and capacity planning read to slot a new order into a technician’s or team’s calendar.

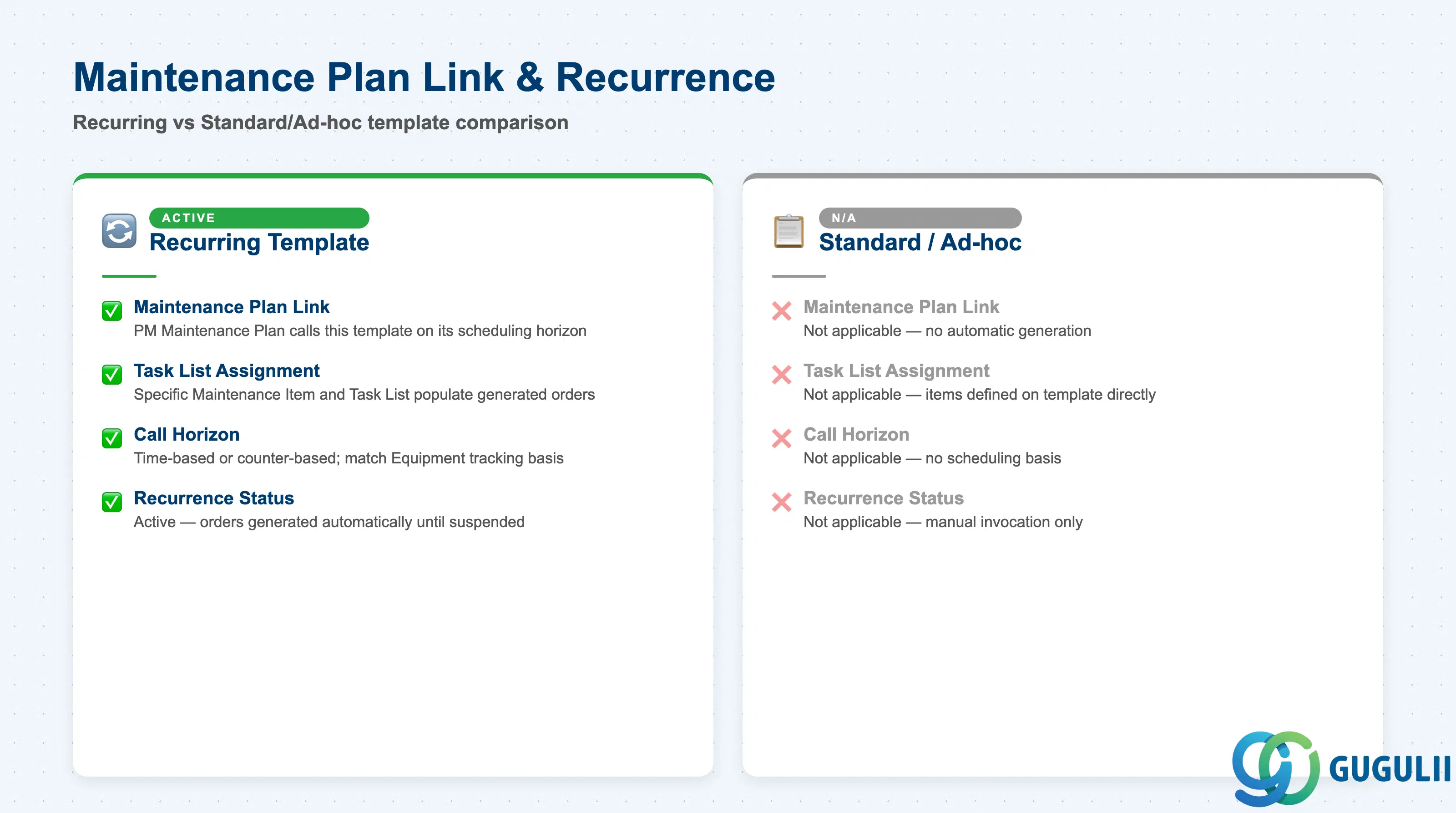

2.4 Maintenance Plan Link & Recurrence#

Maintenance Plan Link & Recurrence is only populated on templates using the Recurring (Scheduled) variant from 1.2 — it is what turns a reusable pattern into an unattended, automatically generated stream of orders.
